Compact AI Series 4CH PoE NVR with 1 x HDD Bay

NVR4COM-I

Regular price $249.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The Watchguard™ Compact AI Series brings the best of AI surveillance features in an affordable package. The NVR4COM-I allows you to bring AI face recognition or AI person/vehicle detection to your CCTV installations, guaranteeing that important events are detected and can be acted upon. This NVR is perfect for new systems or replacement of existing NVRs to upgrade to AI capable surveillance.

Product features:
• Records up to 16.0 megapixel (4920 x 3264)
• Up to 80Mbps incoming bandwidth (recording/outgoing)
• Decoding 4CH@8MP/25fps (AI disabled), 4CH@5.0MP/25fps (AI enabled)
• AI face recognition and database comparison by NVR up to 1 channel, or;
• AI human/vehicle detection via tripwire/intrusion rule by NVR up to 2 channels, or;
• AI human/vehicle detection via motion detection by NVR up to 4 channels
• Support for ANPR up to 4 channels (automatic number plate recognition)
• 1 x SATA bay with support for up to 16TB capacity HDDs per bay
• Built-in 4 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network

*NVRs include 4 year warranty; HDDs include 3 year warranty

Video Input: 4 Channels

PoE: Yes

HDD Capacity: 1

Processor & Operation: Industrial-Grade Processor, Embedded Linux OS, Web Interface / Local GUI

Interoperability: ONVIF 21.12 (Profile T / Profile S / Profile G); CGI; SDK

App Integration: iOS / Android

Recording Resolution: Configurable from 16.0MP (4920 × 3264) to CIF (352 × 288)

Network Bandwidth (AI Disabled): 80Mbps (Incoming/Recording/Outgoing)

Network Bandwidth (AI Enabled): 80Mbps (Incoming/Recording/Outgoing)

Video & Audio Compression: Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG; Audio: G.711a / G.711u / PCM / G726

Playback Channels: 4 Channels

Playback Modes: General Recording, Motion Detection, Intelligent Events, Alarm Triggers

Decoding Capacity (AI Disabled): 4CH @ 8.0MP / 25fps

Decoding Capacity (AI Enabled): 4CH @ 5.0MP / 25fps

Backup Method: USB Device / Network

HDD: 1 × SATA Bay, Up to 16TB

Audio: 1 Channel Input (RCA), 1 Channel Output (RCA)

Alarm Interface: N/A

Alarm Types: Record, Snapshot, IPC External Alarm Output, Audio, Buzzer, Log, Preset, Email

Alarm Actions: Begin Record, Take Snapshot, Camera External Alarm Output, Audio, Buzzer, NVR Log, Camera Preset, Email

Display Output: 1 × HDMI (Up to 3840 × 2160), 1 × VGA (Up to 1920 × 1080)

Display Split: 1st Screen: 1 / 4; 2nd Screen: 1 / 4

Display Mode: HDMI1 + VGA1 (Mirror)

Network Input: 1 × 1000Mbps Ethernet Uplink, 4 × PoE 100Mbps (802.3af/at)

Network Functions: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, Easy4ip

USB & Other Inputs: 1 × Front USB 2.0, 1 × Rear USB 2.0

NVR Operated AI: Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection

Supported Camera AI: Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp (Via PC Web Interface Only)

Face Detection Functions: Gender, Age Group, Glasses, Expressions, Face Mask, Beard

Face Detection (By NVR): 1 Channel (Up to 12 Face Images per Second, per Channel)

Face Detection (By Camera): 4 Channels

Face Recognition Capacity: NVR Supports Up to 10 Face Databases and 200,000 Face Images

Face Recognition (By NVR): 1 Channel (Face Detection via NVR Video Stream Analysis; Face Recognition Performed by NVR) / 4 Channels (Face Detection Performed via Face Capture Cameras via Image Stream; Face Recognition Performed via NVR)

Face Recognition (By Camera): 4 Channels

Human/Vehicle Detection Functions: AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)

Human/Vehicle Detection (By NVR): IVS: 2 Channels (10 Rules per Channel), SMD: 4 Channels

Human/Vehicle Detection (By Camera): IVS: 4 Channels, SMD: 4 Channels

ANPR Functions: Up to 20,000 Plate Numbers, Blocklist & Allowlist

ANPR (By Camera): 4 Channels

Video Metadata Functions: N/A

Video Metadata (By NVR): N/A

Video Metadata (By Camera): N/A

Power Supply: 53VDC / 1.226A

Power Consumption: NVR: <10W (Without HDD) / PoE: Max. 25.5W per Single Port, 36W Total

Operating Environment: -10°C to +55°C / 10–93% RH

Rackmountable: No

Rackmount Units: N/A

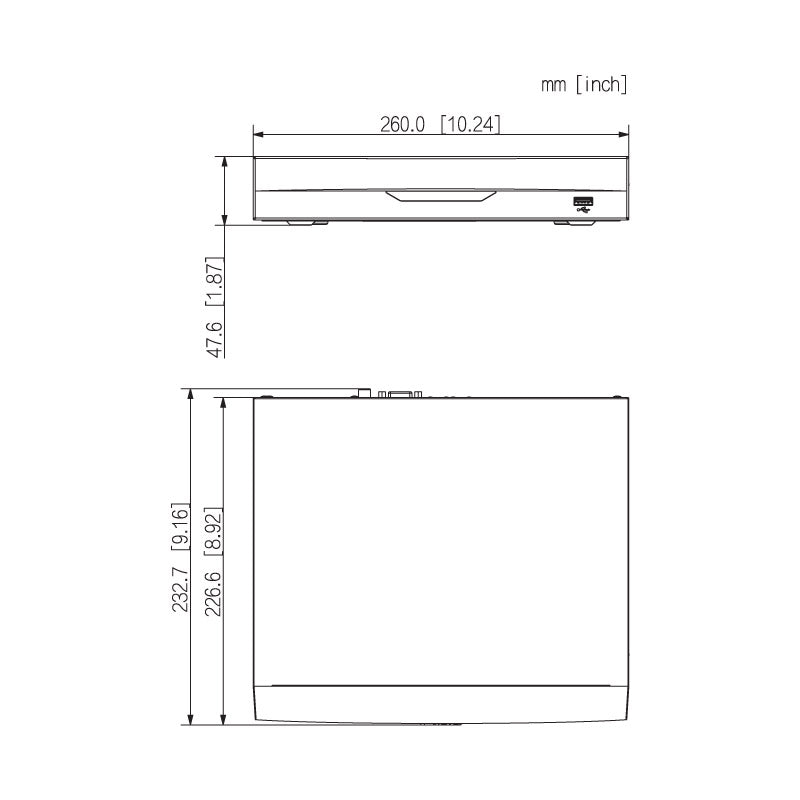

Dimensions: 260 × 232.7 × 47.6 mm

Weight: 0.86 kg (Without HDD)

Warranty: 4 Years

Shipping Width: 89 mm

Shipping Height: 333 mm

Shipping Depth: 315 mm

Shipping Weight: 1.88 kg
