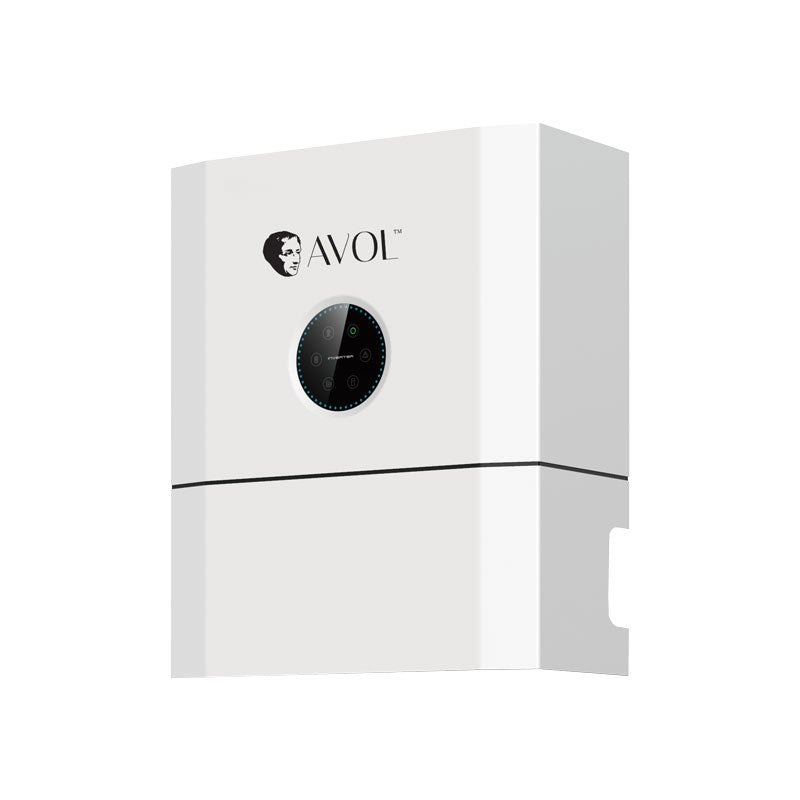

5kW Hybrid Solar Power Inverter

AVOL-GENIUS-IA5

Regular price $3,344.77

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The Genius Series: Single Phase 5kW Hybrid Inverter offers flexibility and simplicity in solar-powered systems and battery storage installations. The hybrid inverter sends DC electricity generated by solar system directly back to the battery, without additional power conversion or equipment, and has a range of features enable full control over energy management.

Features:
• Built-in customised energy management modes (on-grid / off-grid)
• Connects solar energy to household & feeds back into grid
• Power output: 5000W
• High maximum efficiency: 97.6%
• Dual MPPT’s for higher energy harvest
• Remote access - mobile app available

Maximum DC Voltage: 580V
Nominal Voltage: 400V
MPPT Voltage Range: 80–560V
Number of MPP Trackers: 2
Maximum Input Current Per MPPT: 15A
Nominal AC Output Power: 5000W
Maximum AC Apparent Power: 360VA (From Grid)
Maximum AC Output Power: 4999W (Australia)
Nominal AC Voltage: 230V AC
Max. Output Current: 20A
Max. Input Current: 32A
THD: <3% at Rated Power
Battery Type: LFP (LiFePO4)
Nominal Battery Voltage / Charging Voltage: 48V
Battery Voltage Range: 40–60V
Maximum Charge / Discharge Current: 100A
Battery Capacity: 100–400Ah
Charging Strategy for Li-ion Battery: Dependent on the BMS
Max. Backup Output Apparent Power: 5000VA
Max. Output Current (Backup): 20A
Nominal Backup Output Voltage: 230V
Nominal Output Frequency: 50/60Hz
Output THD: <3% (Linear Load)
Max. PV Efficiency: 97.6%
Euro PV Efficiency: 97.0%
DC Switch: Bipolar DC Switch (125A/Pole)
Anti-Islanding Protection: Yes
Output Over Current Protection: Yes
DC Reverse Polarity Protection: Yes
String Fault Detection: Yes
AC/DC Surge Protection: DC Type II / AC Type III
Insulation Detection: Yes
AC Short Circuit Protection: Yes
Dimensions: 540 × 590 × 240 mm
Weight: 32 kg
Operating Environment: -25°C to +60°C
Noise: <25 dB
Cooling Type: Natural Convection
Max. Operating Altitude: 2000 m
Operating Humidity: 0–95% (No Condensation)
IP Class: IP65
Topology: Battery Isolation
Communication: RS-485 / CAN 2.0 / WiFi / 4G
Display: LCD / App
Country of Manufacturer: China
Warranty: 4 Years
Shipping Width: 630 mm
Shipping Height: 730 mm
Shipping Depth: 340 mm
Shipping Weight: 38.00 kg
