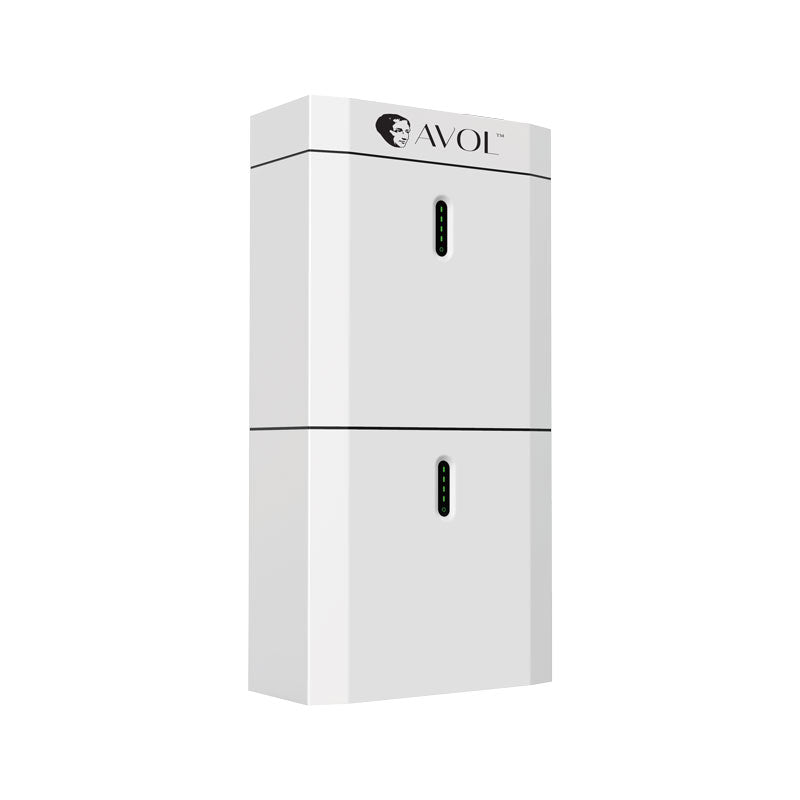

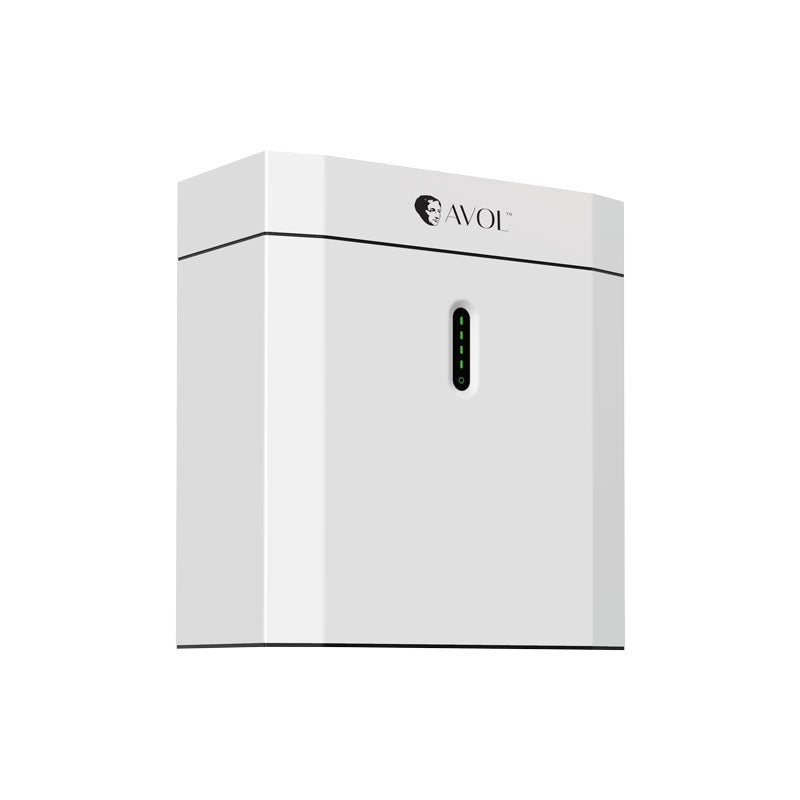

5.1kWh LFP Battery Pack

AVOL-GENIUS-BA5

Regular price $5,699.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

The Genius Series: 5.1kWh LFP Battery Packs are modular designed to store and provide energy during the day and night when used with a PV system. Lithium Iron Phosphate Batteries (LiFePO4 / LFP) used in the Genius Battery pack features longer life span, zero maintenance, ultra-safe, lightweight, improved charge and discharge efficiency.

Features:
• Modular, robust design delivers excellent levels of safety and performance
• Cells produced by the world’s industry leading partner Contemporary Amperex Technology Co., Limited
• Up to 4 modules in a single PV system
• Up to 20kWh of energy storage
• 10,000 cycles at 90% depth of discharge
• IP65 weather rated, 5-year warranty

Battery Type: Lithium Iron Phosphate (LiFePO4 / LFP)
Weight: 54 kg
Dimensions: 540 × 490 × 240 mm
IP Protection: IP65
Warranty: 5 Years (Product) / 10 Years (Performance)
Country of Manufacturer: China
Energy Capacity: 5.12kWh
Usable Capacity: 4.6kWh
Depth of Discharge (DoD): 90%
Nominal Voltage: 51.2V
DC Circuit Breaker: 125A
Operating Voltage Range: 44.8–56.5V
Internal Resistance: <20mΩ
Cycle Life: 10,000 Cycles
Maximum Charge / Discharge Current: 50N80A
Rated DC Power: 4096W
Max. Charge / Discharge Power: 2825W / 4096W
Operating Temperature Range: 0°C to 50°C Charging / -10°C to 50°C Discharging
Humidity: 0–95% (No Condensation)
Modules Connection: Max. 4
Capacity: 100–400Ah
Power Consumption: <2W
Communication: CAN & RS-485
Monitoring Parameters: System Voltage, Current, Cell Voltage, Cell Temperature, PCBA Temperature Measurement
Warranty: 5 Years
Shipping Width: 640 mm
Shipping Height: 730 mm
Shipping Depth: 360 mm
Shipping Weight: 61.00 kg
