4x Beam Hardwired IR Motion Detector

ALE-PIRB

Regular price $229.00

Tax included. Shipping calculated at checkout

Garden Lighting Banner

30 DAYS RETURNS* FOR PEACE OF MIND

Australia-wide Shipping from $15.95

Austrilan Owned Authentic Product

Description
Specifications

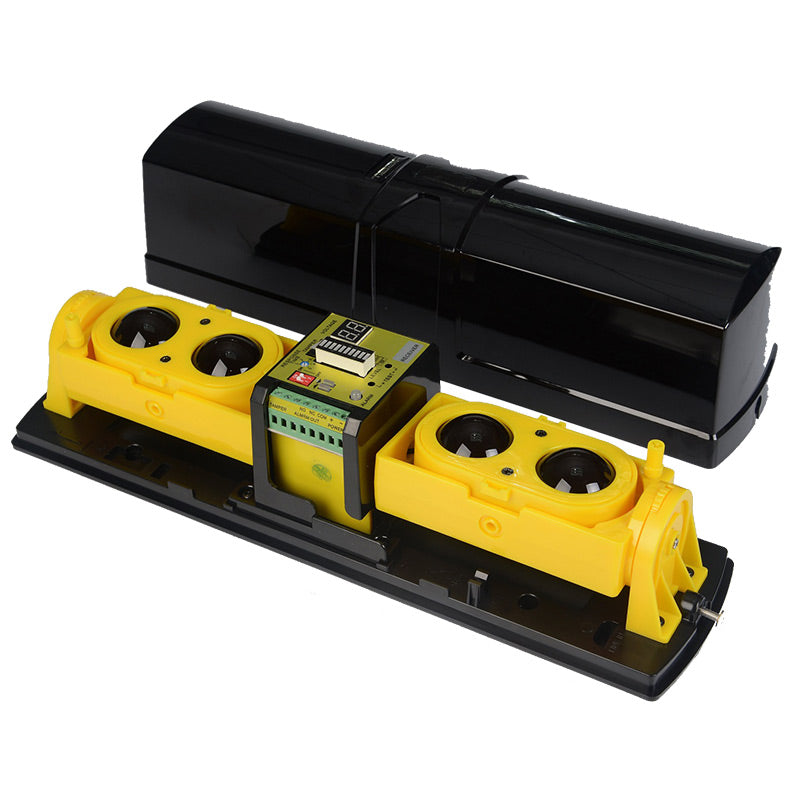

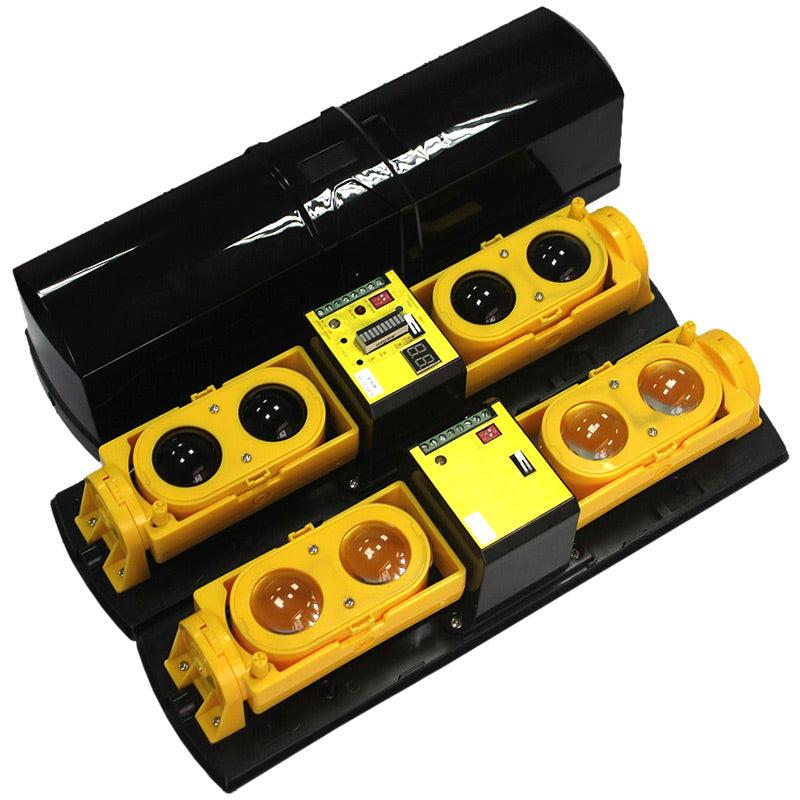

This 100m photoelectric detector uses 4 pulsed infrared beams that are designed to activate an alarm only when 4 beams are simultaneously blocked.
The robust IP55 housing of the four photoelectric detectors is designed to provide reliable perimeter security both indoors and out. The transmitters emit invisible infrared beams to the receiver with changing frequencies to protect beams from disturbance.

Product features:
• Outdoor detection range up to 100m
• Anti-electromagnetic interference capability, suitable for substations, wireless base stations.
• Adjustable induction speed and alarm trigger time 35-700msec
• Optical adjustment angle (H)180° ±90° (V) 20° ±10°
• Ingress protection: IP55
• Dimensions: 370 x 101 x 96mm

Alarm Output: Relay Output NC/NO Optional, AC/DC 30V 0.2A Max
Alarm Period: 2 Seconds
Beam: 4
Case Material: PC
Certificate: CE Certified
Contact Capacity: AC/DC 30V 0.2A Max
Detection: Infrared Beam, Interruption Alarm
Dimensions: 370 × 101 × 96 mm
Interruption Time: 35–700 ms (Optional)
Operating Temperature: -25°C to +55°C
Power Supply: 12–24V DC
Tamper Switch: NC, Opens When Cover Is Removed
Type: Motion Sensor
Waterproof Grade: IP55
Working Current: 105mA Max
Warranty: 2 Years
Shipping Width: 85 mm
Shipping Height: 360 mm
Shipping Depth: 90 mm
Shipping Weight: 2.30 kg
